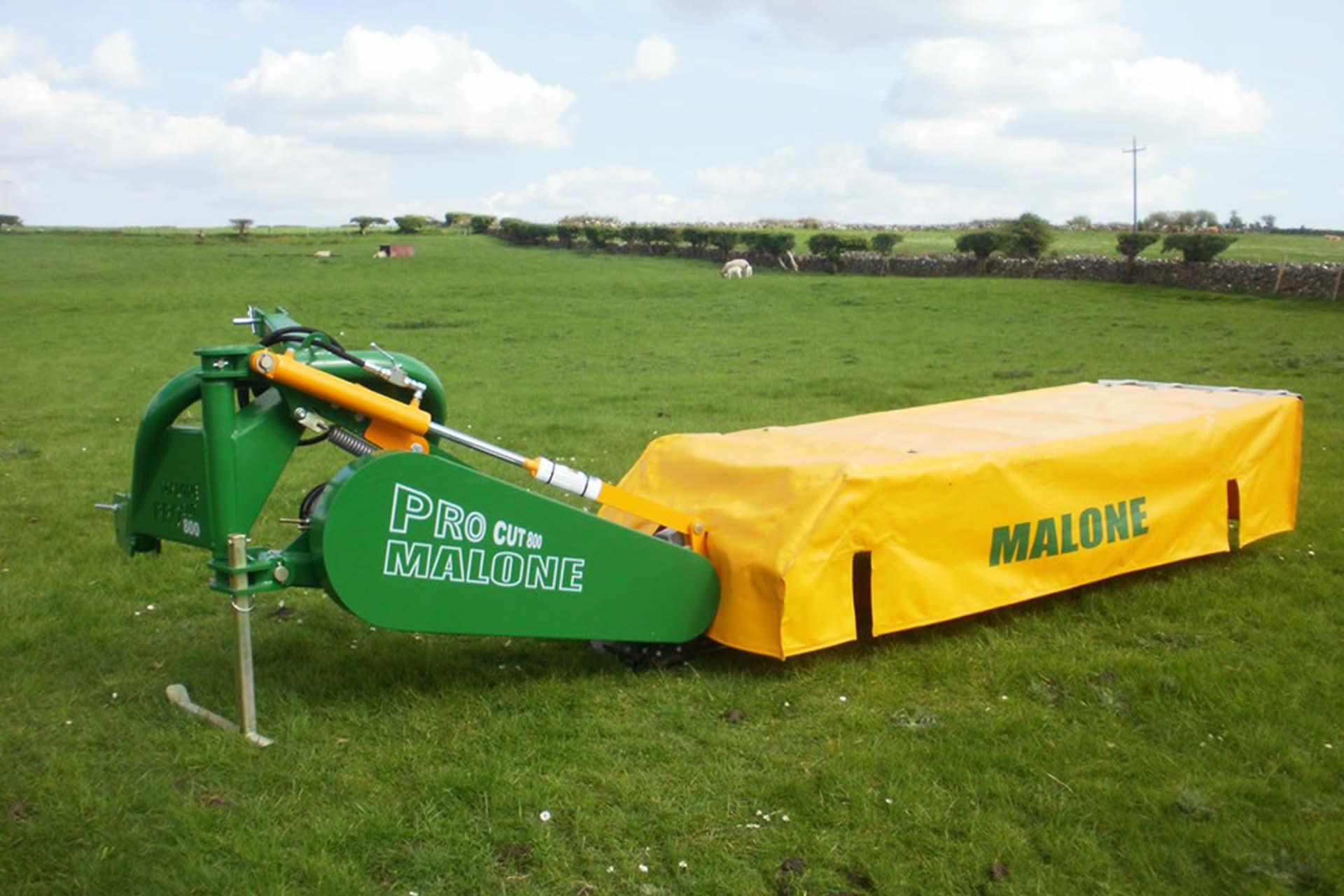

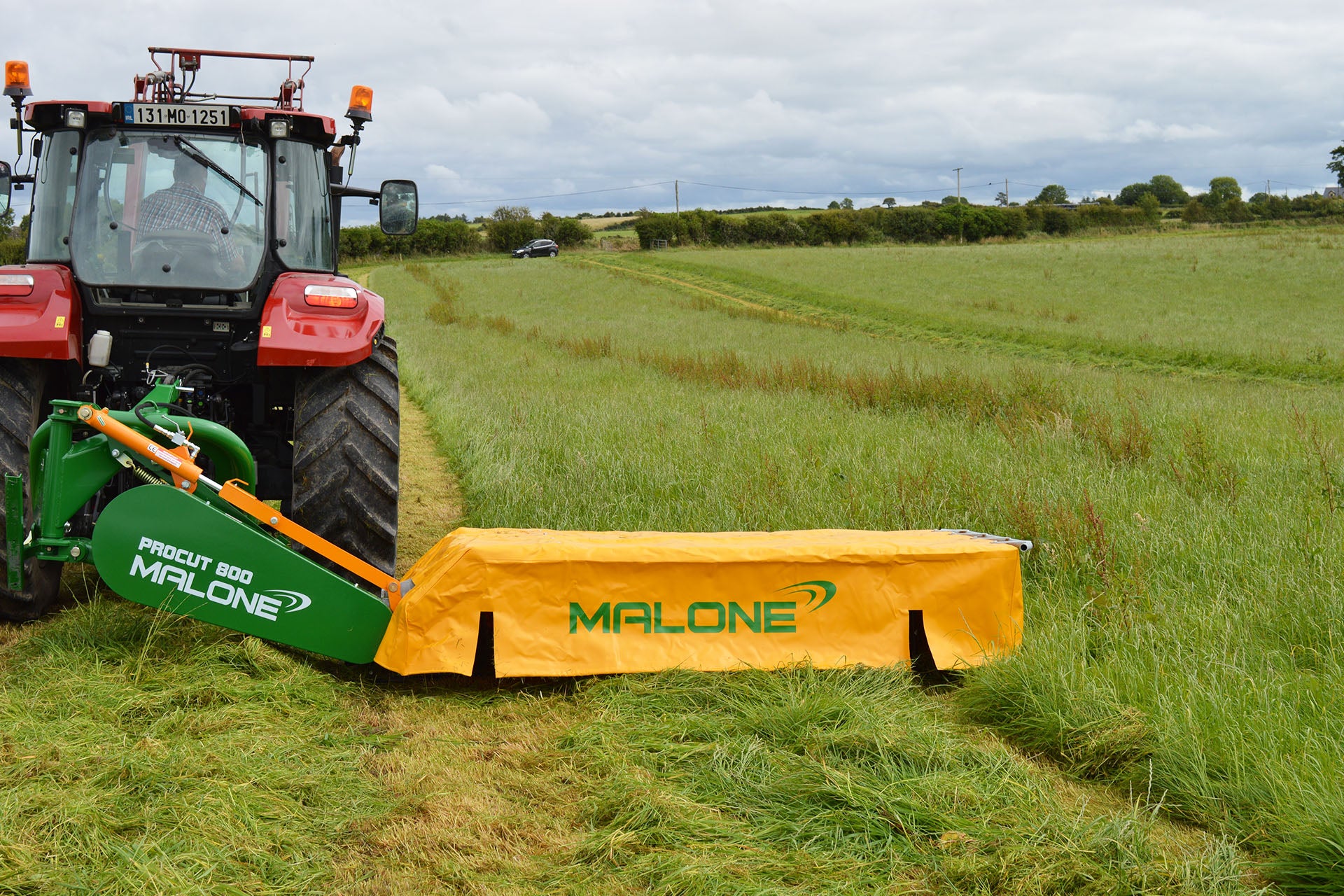

Malone Procut 700,800,900
The Procut mowers are available in three different cutting widths. What really makes the Malone Mower a cut above the rest is the heavy duty Galvanised Frame, ensuring the long life of your machine and the Multi Banded belt prevents slipping and means that constant power is transmitted to the heavy duty cutter bar.
Another advantage of the Malone mower is the design of the lift arm brackets on the headstock, allowing a single operator to mount the mower onto the tractor quickly and easily without assistance.
Features
- Available in three sizes 7', 8' & 9'
- Galvanised curtain frame
- Multi-band belt driven
- Bronze Bushing on main pivot point
- Heavy duty cutter bar
- Topping skids included
- Tool box & full colour user manual
- Superior floatation
Specs
700 | 800 | 900 | |
---|---|---|---|
Cutting Width | 2.1m | 2.4m | 2.85m |
Transport Width | 1.75m | 1.75m | 1.95m |
Cutter Bar | Serviceable from top | Serviceable from top | Serviceable from top |
No. of Discs | 5 | 6 | 7 |
Blades Per Disc | 2 | 2 | 2 |
Blade | 4mm | 4mm | 4mm |
Topping Skids | Included as standard 40mm | Included as standard 40mm | Included as standard 40mm |
Swath Width | 1.5m | 1.8m | 2.1m |
Swath Wheels | 1 | 2 | 2 |
Driveline | Heavy duty drive shaft / PTO Overrun / Multiband Belt | Heavy duty drive shaft / PTO Overrun / Multiband Belt | Heavy duty drive shaft / PTO Overrun / Multiband Belt |
HP Req. | 60 | 70 | 80 |
PTO Speed | 540rpm | 540rpm | 540rpm |
Hydraulics Req. | 1 Single Acting | 1 Single Acting | 1 Single Acting |
POA
