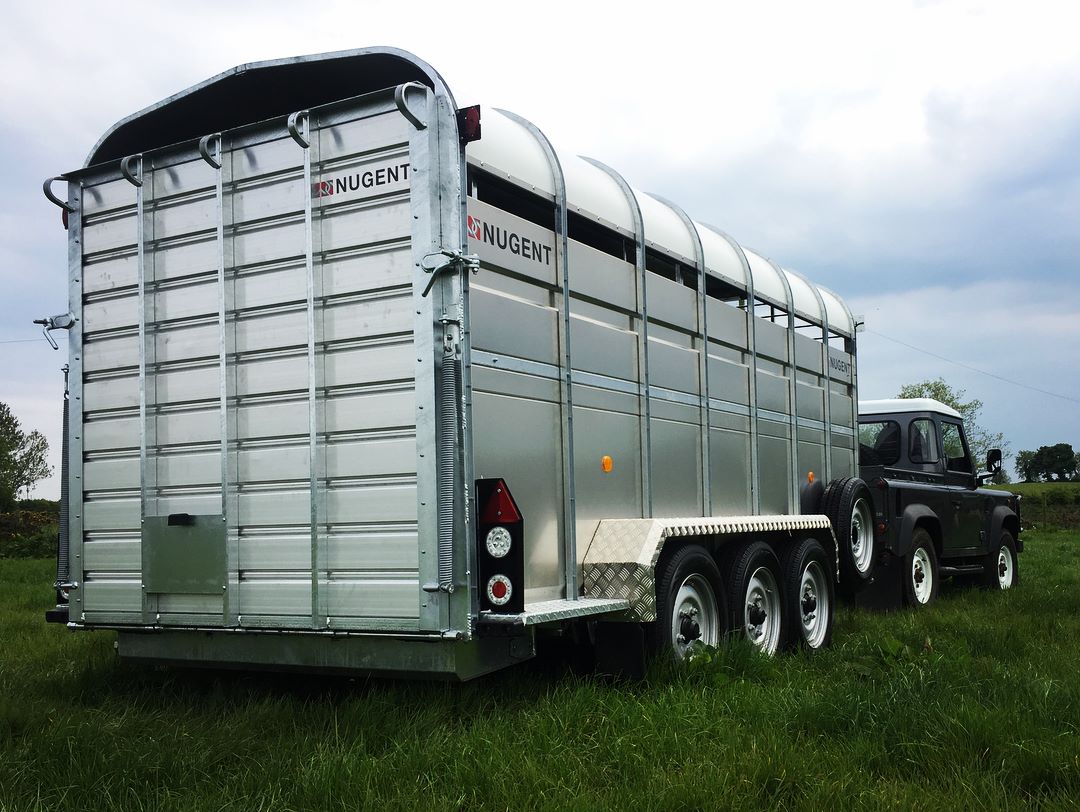

Nugent Livestock Trailers are engineered and hand built to last and with full type approval (ECWVTA). Any farmer will appreciate the attention to detail.

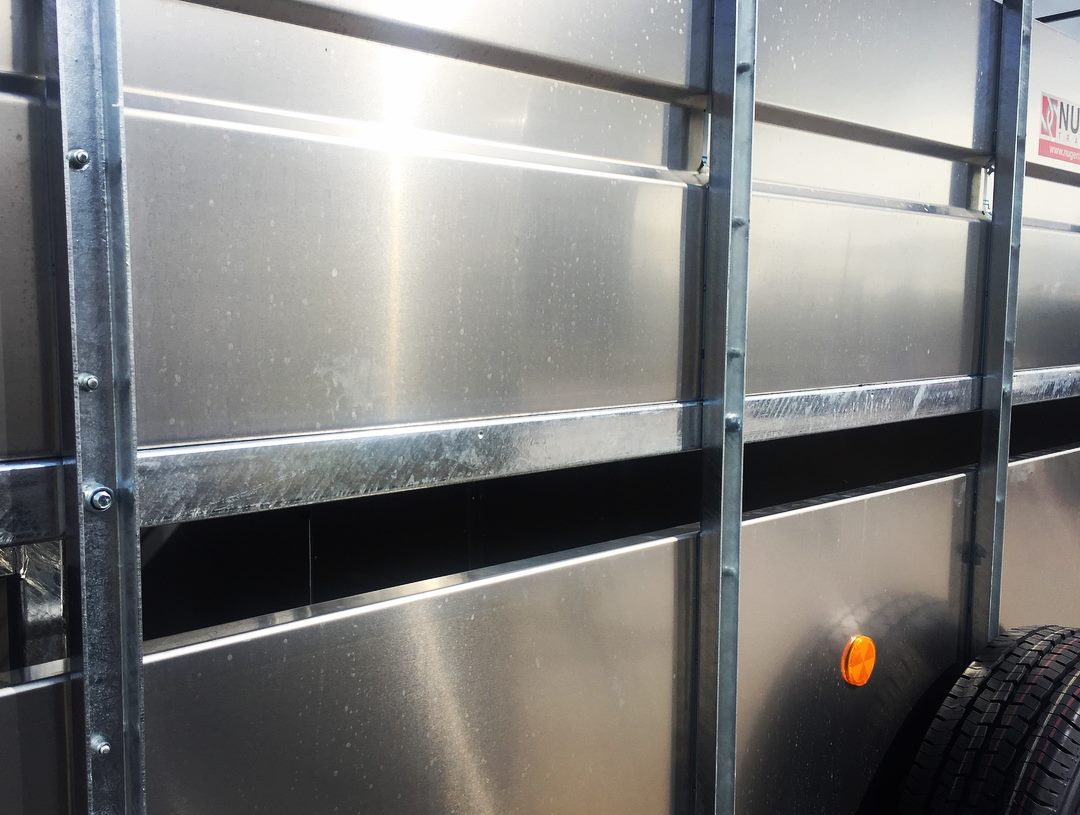

Nugent’s patented Dual Drive™ suspension is standard across the range. Therefore enhancing the towing experience and bringing trailer suspension to new levels. A cross member frame braces the front and rear weldment upon a fully welded, galvanised chassis, furthermore ensuring maximum strength, while extra reinforcement is given where it is needed by the folded side panels.
The trailer’s steel sub-frame is fully hot dip galvanised and fitted with a heavy duty steel fabricated dividing gate. Innovative features are combined with years of trailer design expertise to produce the perfect trailer for the transportation of livestock.
Durable tyres, parabolic leaf spring suspension, solid beam axles and commercial lights, offer superior build quality, strength, longevity and excellent towing characteristics.
The unique design of the sectional fold down front panels facilitates airflow through the trailer whilst in motion, consequently reducing the drag of the trailer and providing for a better towing trailer. The added benefit is that less air resistance significantly decreases fuel consumption.
The Nugent livestock is designed to be user friendly, with paramount safety for both animal and farmer. With a variety of sizes, ranging from 8 foot to 14 foot long, Nugent has a Livestock trailer for every requirement.
Fold-up sheep decks are conveniently and safely stowed for quick and easy access. They can be deployed without the need for any tools or special equipment. Dividing gates are supplied in both heights for when decks are in or out of use.

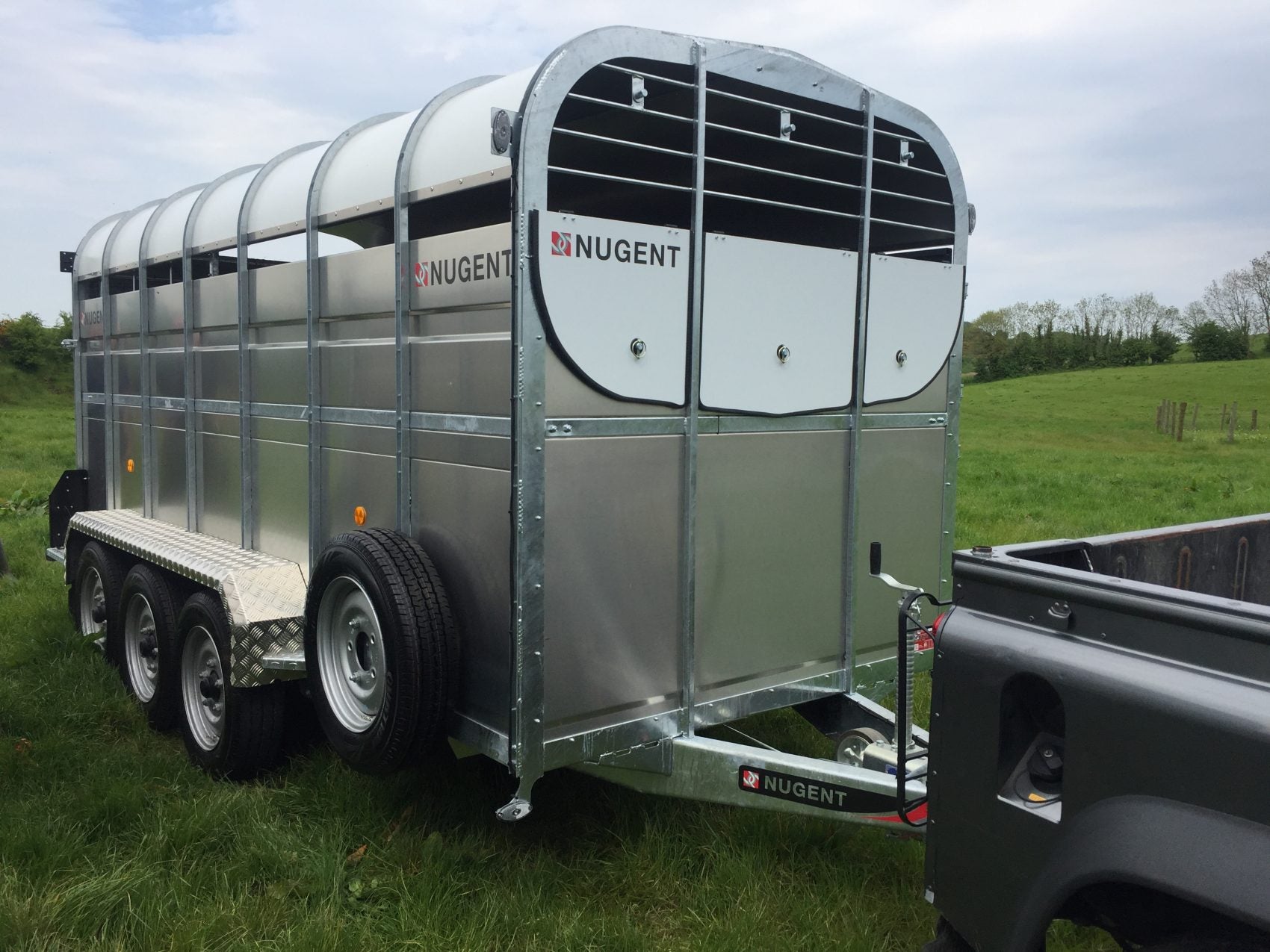

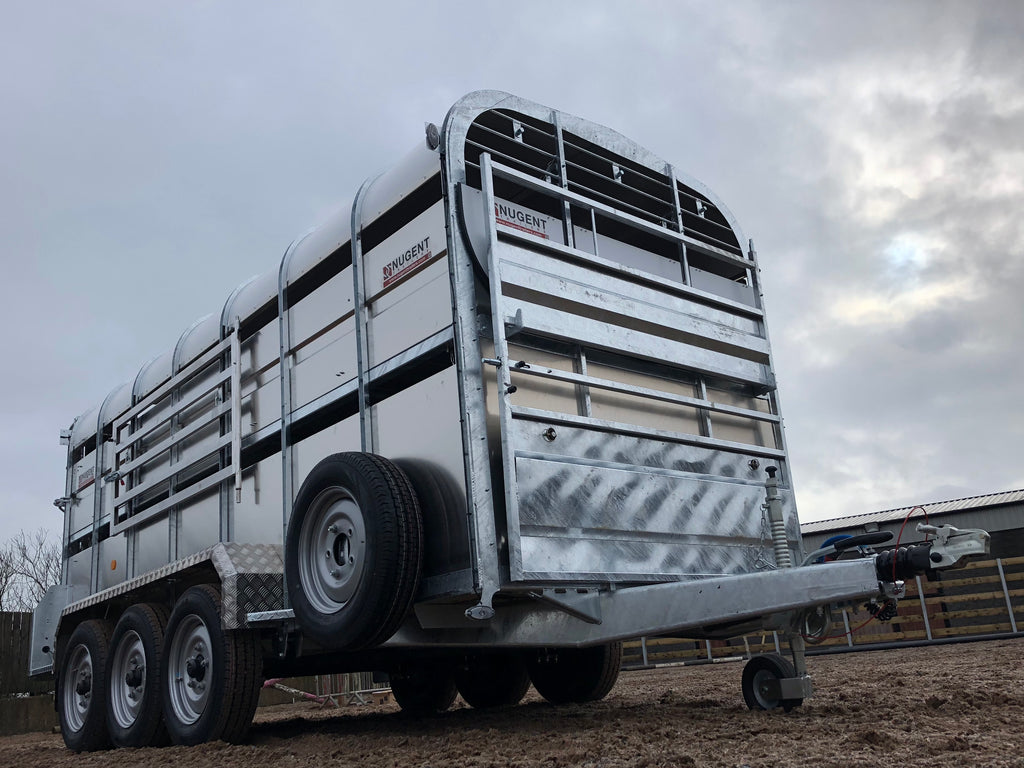

Tri axles are optional on 12 and 14 foot models and offer extra stability. Aluminium mudguards are standard on all tri-axle models.
Standard Features
Dual Drive suspension.
Sectional fold down front panels.
Durable tyres.
Market leading Knott brakes and axles.
Heavy duty jockey wheel.
Spare wheel with support.
Multiple diving gate hangers for taoilered sectioning of each load.

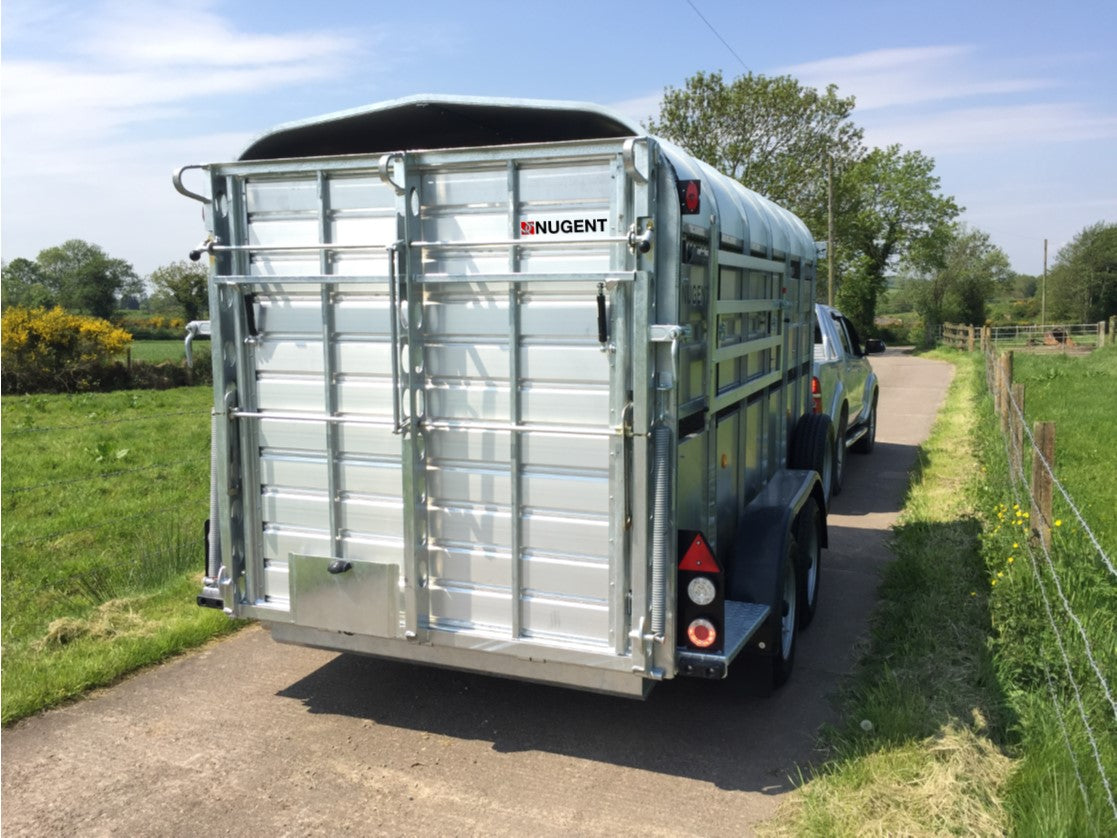

Robust tail door fastener. Winders are simple but effective and help to strenghten the trailer when the ramp is closed.
Internal dividing gate with multiple hanging locations.

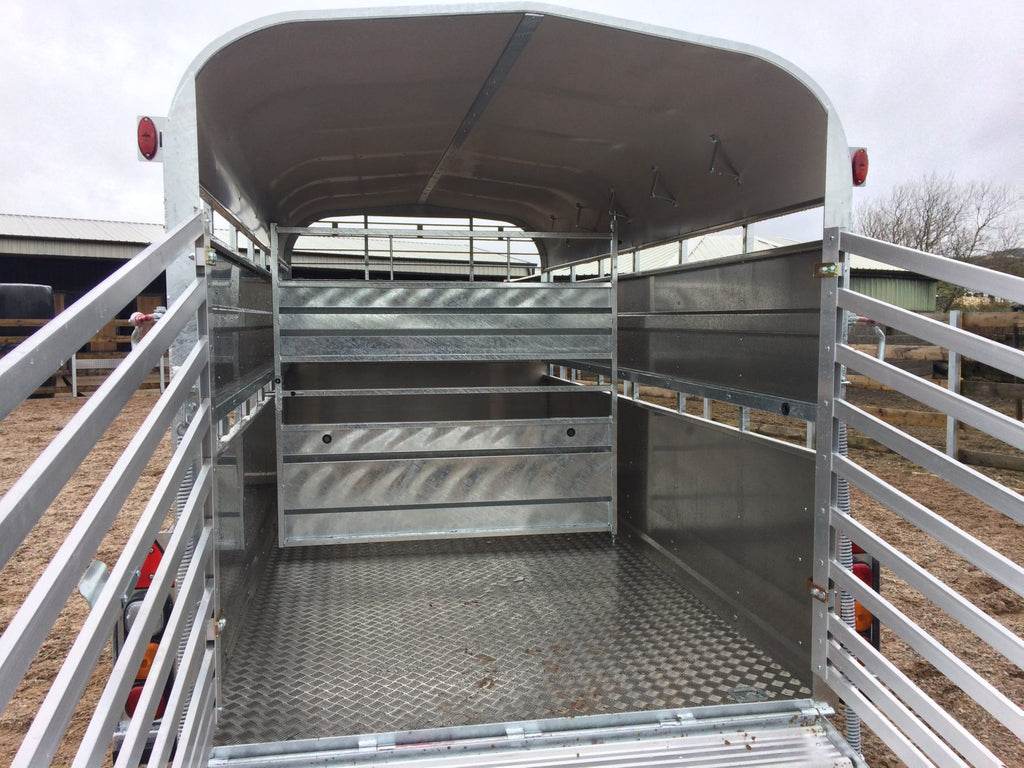

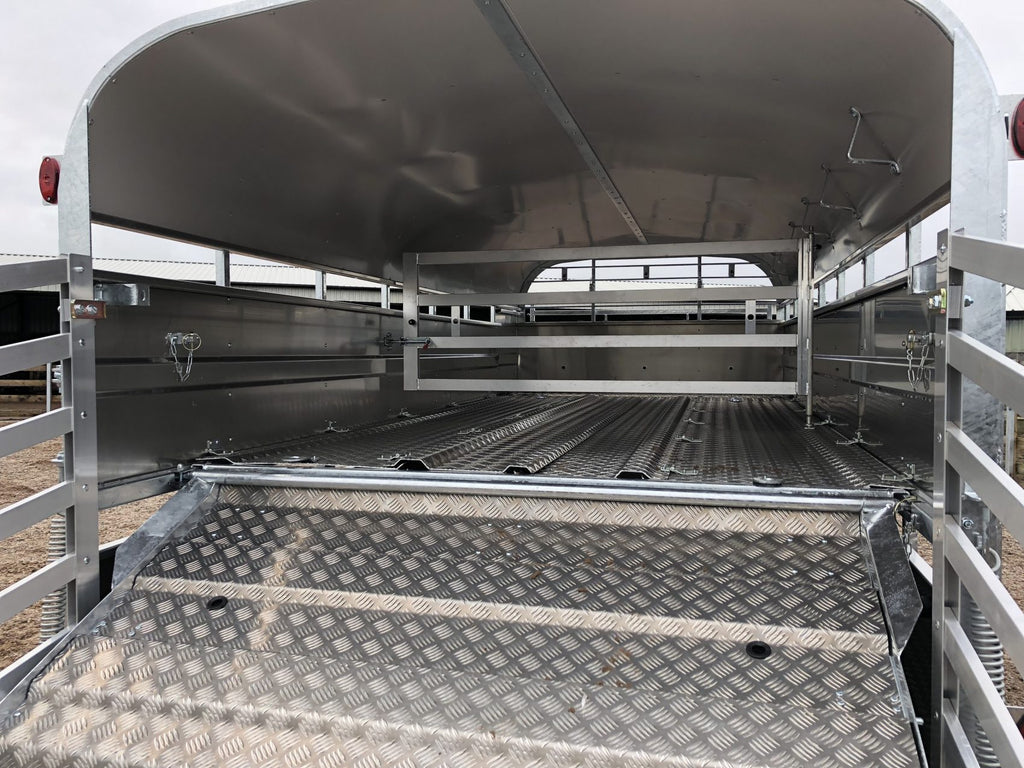

30mm timber floor with a one piece, fully sealed 3mm aluminium tread plate floor covering.

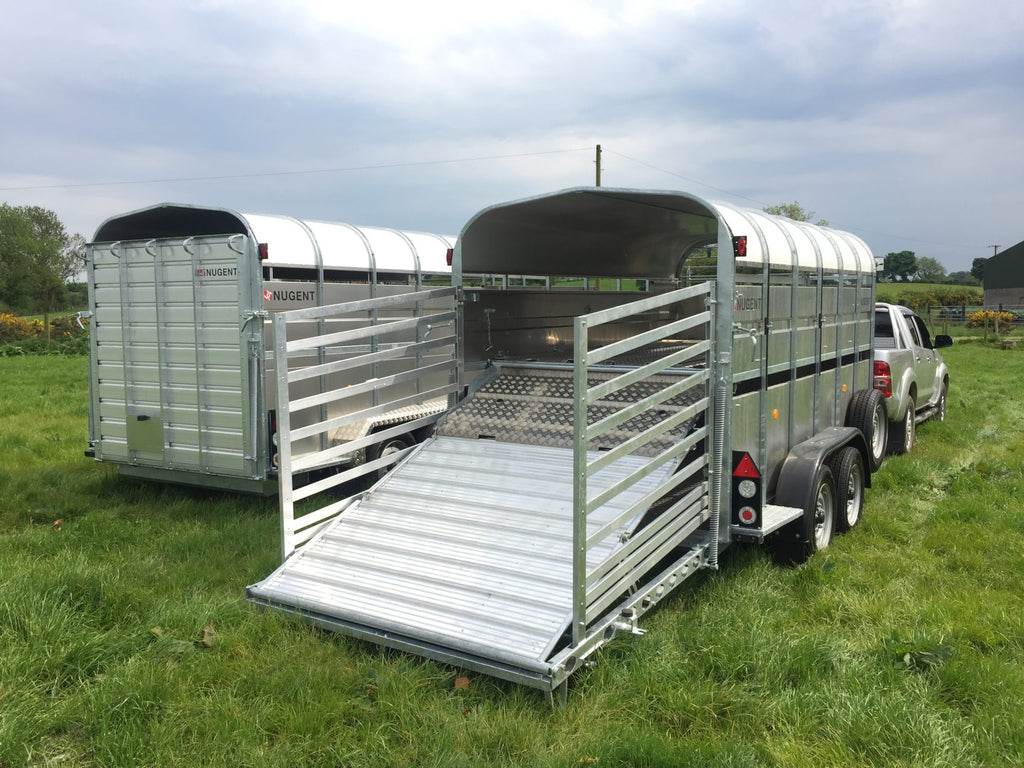

Reinforced loading ramp.
Mono bolts pin and collared joint fabrication.
Inspection door.
LED lights.
Lockable coupling.
Optional Extras
Collection tank-fully welded and sealed-hygienic disposal
Flaps(hinge and clip system).
Fold-up sheep decks.
Closed in bottom vents.
Additional pair of loading gates.
Horse partitions (7ft high trailers).
Aluminium mudguards for twin axle models.
Additional dividing gate.
Internal Light
Dual doors-can be used as a ramp
POA
